In the world of precision mechanical machining, the sliding head lathe—widely known as the Swiss-type lathe or Swiss automatic lathe—stands as a cornerstone technology. Trusted by leading global brands in the medical, aerospace, and electronics industries, this machine architecture has become the gold standard for manufacturing long, slender components where accuracy is non-negotiable.
Unlike conventional CNC lathes (often called fixed headstock lathes or chucker lathes) where the workpiece rotates while the cutting tool moves, the sliding head lathe operates on a fundamentally different principle: the material moves axially while the cutting tools remain stationary at the point of cut. It is this principle that solves the physical challenge of workpiece deflection—and it is precisely this principle that drives the design of our Newin N-ST205 series sliding head CNC lathe.

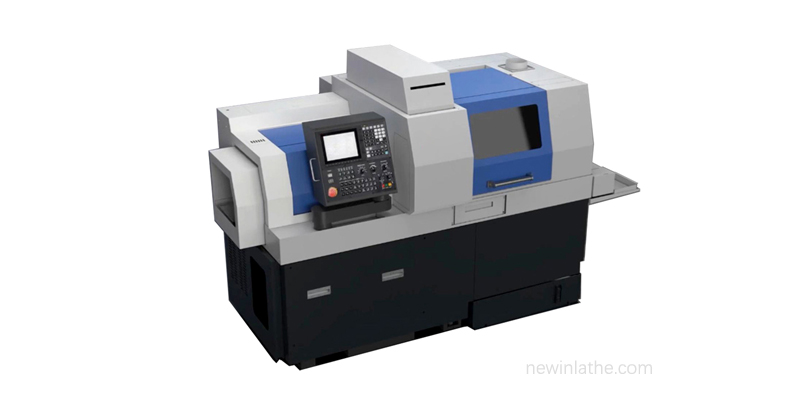

Figure 1: Newin N-ST205 sliding head CNC lathe – a high-precision Swiss-type turning center designed for complex medical and electronic components.
1. What is a Sliding Head Lathe?
A sliding head lathe (also called a Swiss-type lathe or Swiss screw machine) is a CNC lathe designed for high-precision machining of long, slender components. Unlike conventional lathes where the workpiece rotates and the tools move, the sliding head lathe holds the cutting tools in a fixed position while the sliding headstock moves the bar stock axially through a guide bush (guide bushing). This unique design provides exceptional support to the workpiece at the point of cut, eliminating deflection and enabling superior accuracy even for parts with extreme length-to-diameter ratios.
2. How Does the Guide Bush Work?
At the heart of every sliding head lathe lies the guide bush. This precision component is mounted directly in front of the cutting tools. As the sliding headstock pushes the bar stock through the guide bush, the material is supported at the exact point where cutting occurs—typically within millimeters of the tool engagement.

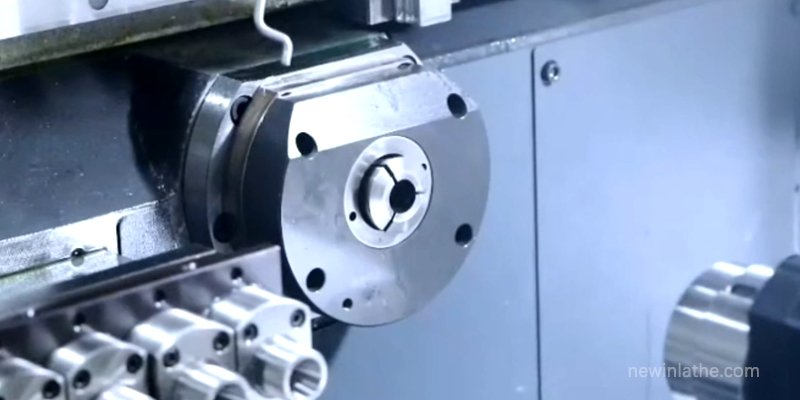

Figure 2: The precision guide bush on the Newin N-ST205 sliding head CNC lathe. By supporting the workpiece at the exact point of cut, this Swiss-type lathe delivers exceptional straightness and surface finish for long, slender components.
Why is this critical? On a conventional fixed headstock lathe, long, slender workpieces tend to deflect under cutting pressure, causing taper, vibration, and poor surface finish. The guide bush eliminates this problem by providing rigid support immediately adjacent to the cutting zone. The result is exceptional straightness, concentricity, and surface quality—even for parts with length-to-diameter ratios exceeding 10:1.
For manufacturers machining medical bone screws, dental implants, electronic connectors, or precision shafts, the guide bush is not an accessory—it is the defining feature that makes Swiss-type machining the preferred solution.
3. Sliding Head vs. Fixed Headstock: Key Differences
To help you quickly understand the distinction between these two machine architectures, here is a comparison:
| Feature | Sliding Head Lathe (Swiss-Type) | Fixed Headstock Lathe (Conventional) |
|---|---|---|
| Workpiece Movement | Material moves axially | Material rotates, remains axially fixed |
| Tool Movement | Tools are fixed; headstock slides | Tools move along and across the workpiece |
| Key Component | Guide bush provides rigid support | Chuck or collet at spindle only |
| Strength | Long, slender parts; high precision | Short, rigid parts; high material removal rates |
| Typical Industry | Medical, aerospace, electronics, watchmaking | General automotive, hydraulic fittings, general turning |
Figure 3: Flexibility matters. The N-ST205 series supports both machining with guide bush (left) for long slender parts, and guide bush removable (right) for short components to save material.
4. Introducing the Newin N-ST205 Series
Built on the proven principles of Swiss-type machining, the Newin N-ST205 series sliding head CNC lathe delivers precision, flexibility, and value for manufacturers seeking a reliable solution for complex, high-precision components.
Key features of the N-ST205 series include:
- Flexible guide bush configuration: Supports both machining with guide bush (for long, slender parts) and guide bush removable mode (for short components to maximize material savings).
- High-precision sliding headstock: Ensures exceptional straightness and concentricity for parts with high length-to-diameter ratios.
- Compact footprint: Designed for efficient shop floor utilization without compromising performance.
- User-friendly CNC control: Intuitive operation with robust programming capabilities.
Whether you are machining medical implants, electronic connectors, or precision automotive components, the N-ST205 series is engineered to meet the demands of modern precision manufacturing.
