N-CG45 High-Precision Multi-Function Grinding Machine | ID, OD, Taper & Face Grinding

283 Views

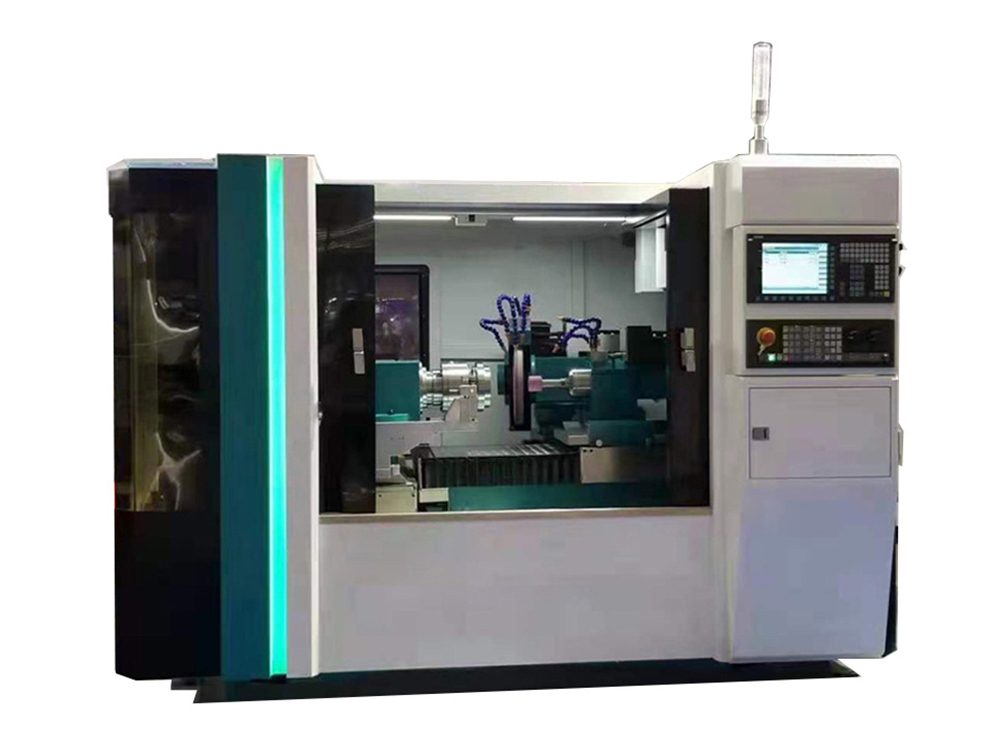

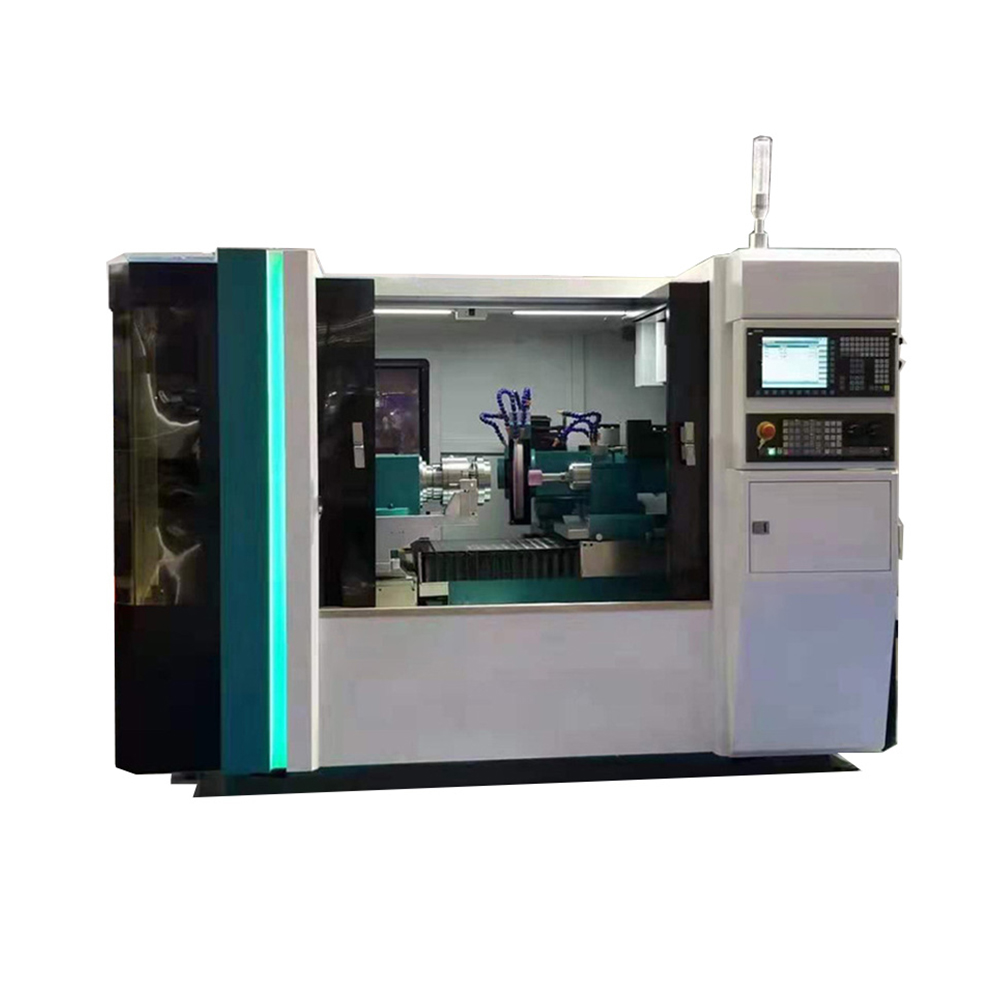

The N-CG45 high precision multi-function grinding machine combines internal, external, face, and taper grinding in one setup with modular design.

 | SPECIFICATIONS:
√ Internal wheel spindle stroke 0-470mm, External wheel spindle stroke 0-365mm.
√ Ideal for high-precision, complex grinding of small to medium parts, with options for automation and in-process gauging.

Category :

High-Precision Composite Grinding Machine

Description

N-CG45 High Precision Multi-Function Grinding Machine: Modular Solution for Complex Precision Grinding

The N-CG45 High Precision Multi-Function Grinding Machine is engineered for high-precision, complex grinding applications. Its modular architecture integrates internal, external, taper, and face grinding operations into a single setup, eliminating repositioning errors and maximizing efficiency.

Designed for flexibility, it supports various wheelhead configurations and automation options, delivering a complete grinding solution for small to medium-sized workpieces, from prototyping to high-volume production.

Key Features & Specifications

| Complete Grinding Capability in One Setup

• Perform internal, external, face, and taper grinding without rechucking, ensuring superior concentricity and accuracy.

• Internal Wheel Spindle Stroke: 0 – 470 mm；External Wheel Spindle Stroke: 0 – 365 mm.

| Modular & Flexible Configuration

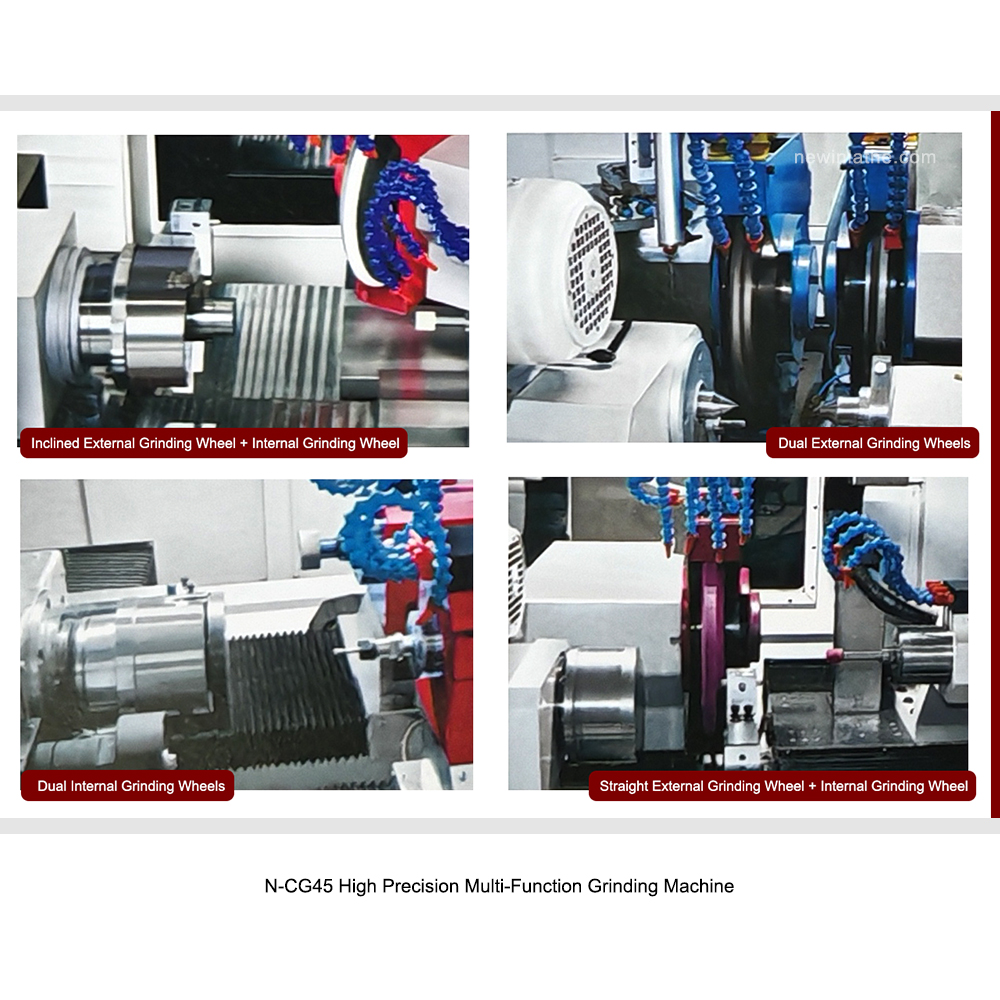

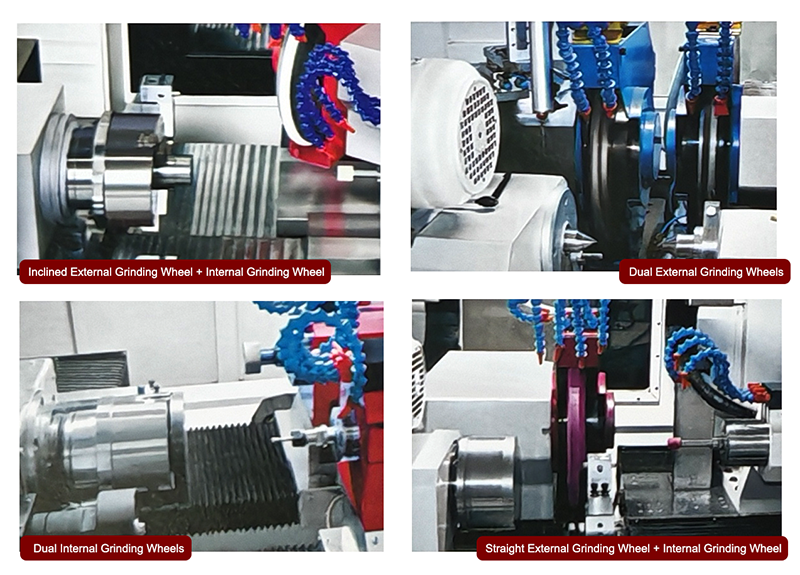

	• Interchangeable Wheelhead Options: > Inclined External Grinding Wheel + Internal Grinding Wheel > Dual External Grinding Wheels > Dual Internal Grinding Wheels > Straight External Grinding Wheel + Internal Grinding Wheel • Mix and match internal/external modules to suit specific part geometries and processes.

| User-Friendly Control & Automation Readiness

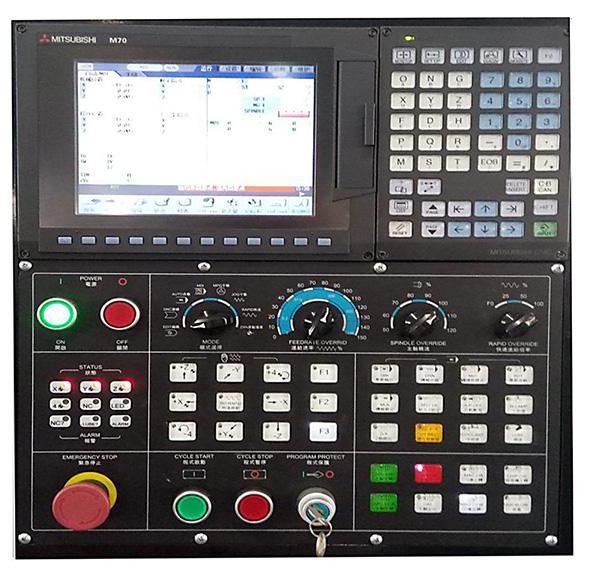

• Intuitive CNC system allows easy on-machine programming for grinding and wheel dressing cycles. • Compatible with in-process gauging systems for real-time SPC and closed-loop feedback. • Optional automatic loading/unloading systems enable lights-out production for batch manufacturing.

| Special Attachments & Options

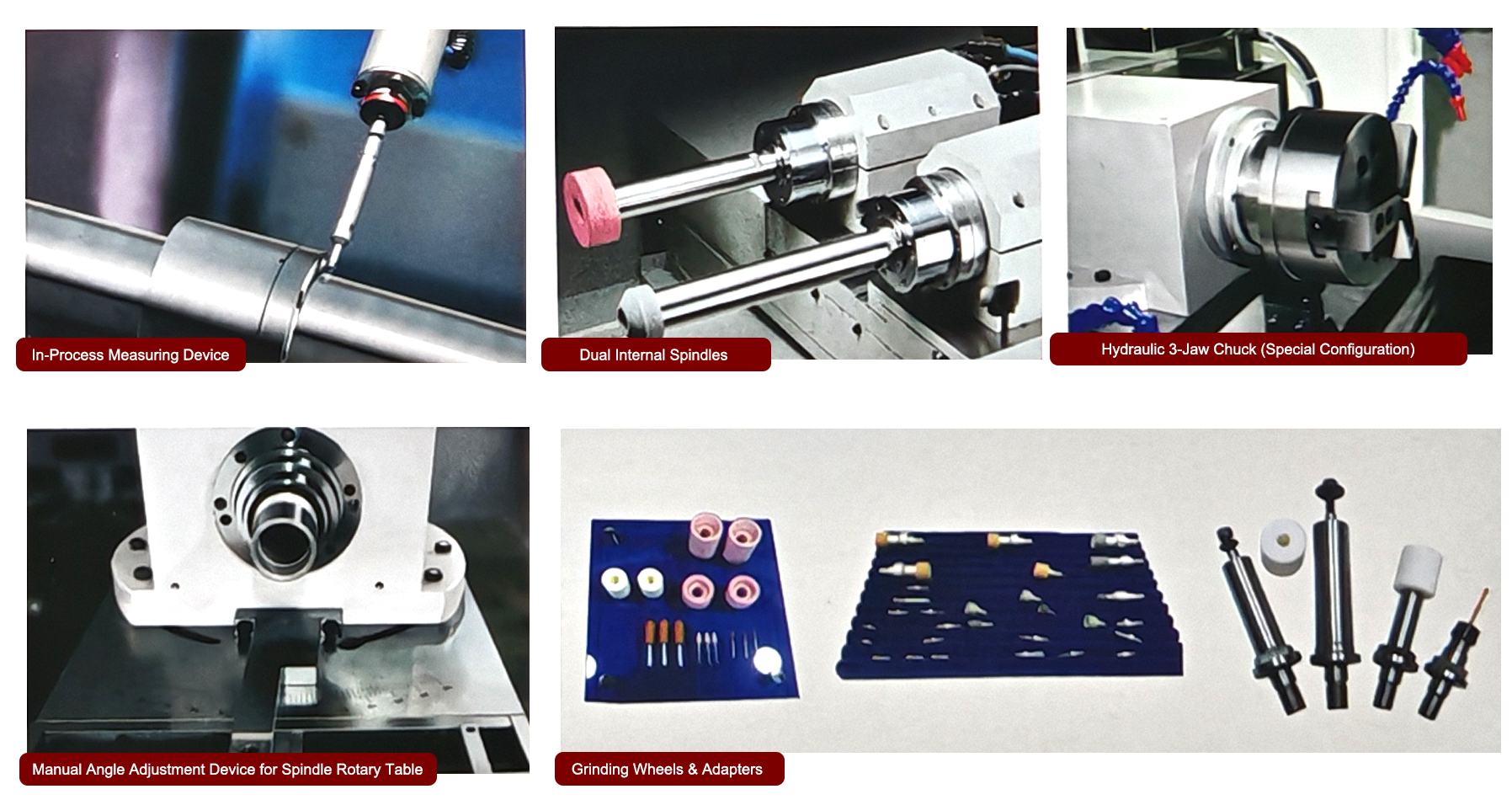

	• In-Process Measuring Device • Dual Internal Spindles • Hydraulic 3-Jaw Chuck (Special Configuration) • Manual Angle Adjustment Device for Spindle Rotary Table • Grinding Wheels & Adapters

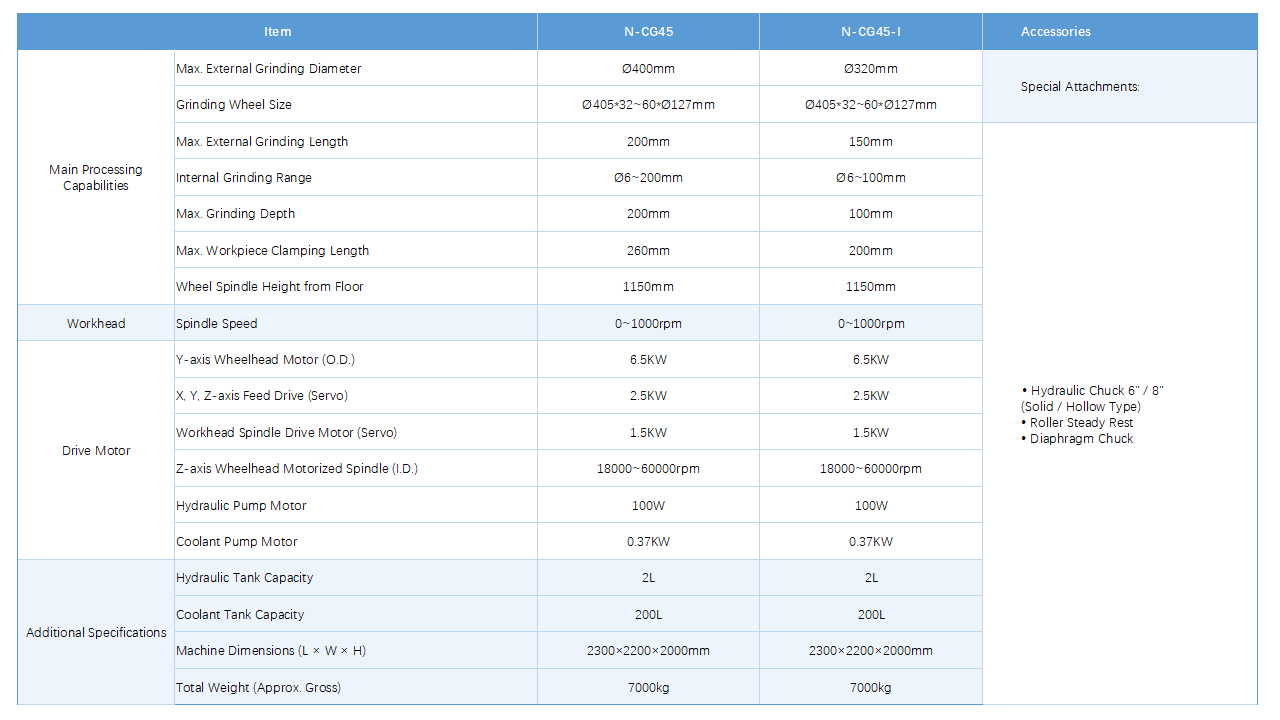

| Parameter

Application Industries

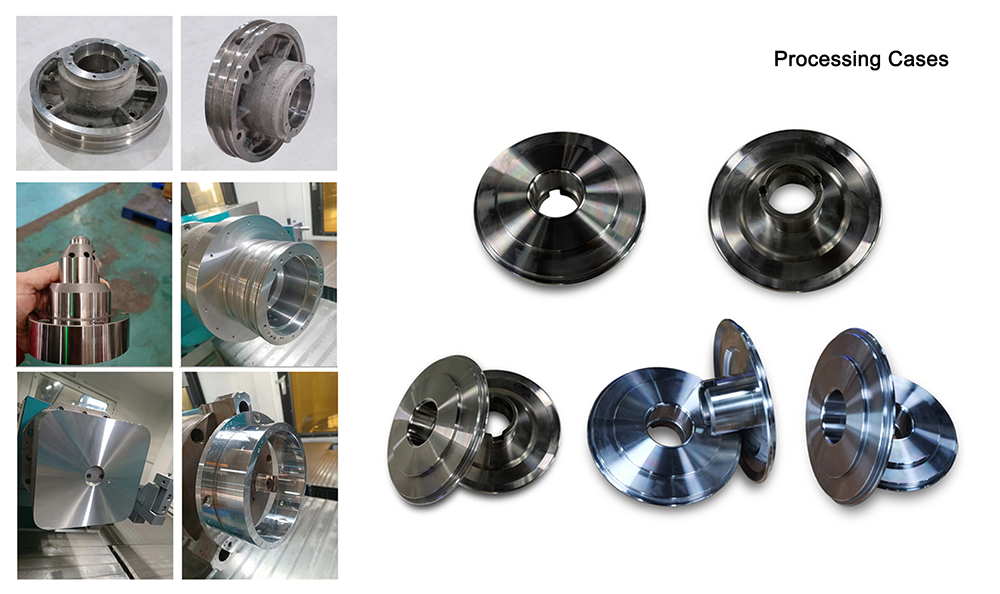

• Precision Components: Bearings, bushings, mold cores, precision shafts	• Hydraulic & Pneumatic Parts: Cylinder tubes, valve spools, sleeves
• Automotive: Transmission shafts, steering components, engine parts	• Tool Manufacturing: Drill bits, reamers, taps (taper & O.D./I.D. grinding)
